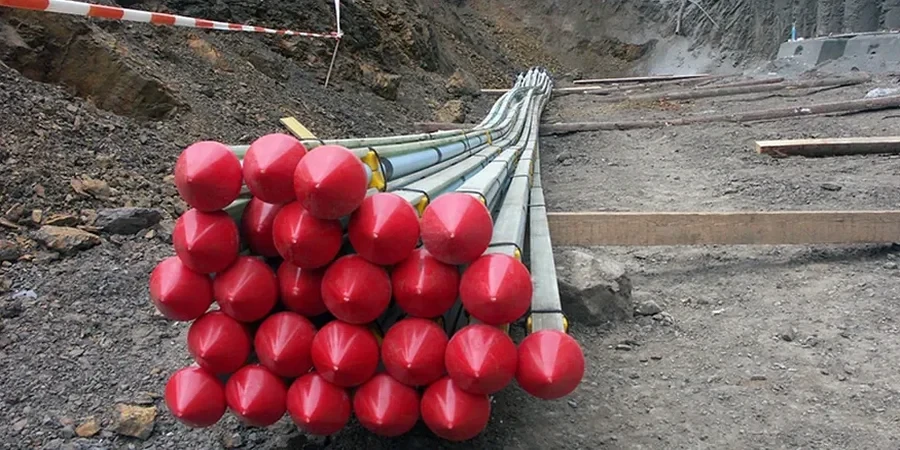

Tempe sits in the Salt River Valley, where summer highs routinely exceed 105°F and the soil profile is anything but predictable. You hit caliche layers at 3 feet on one lot and 12 feet on the next, a condition tied to the Pleistocene-era fluvial deposits that define the basin. This cemented calcium carbonate hardpan creates a false sense of bearing strength; it fractures under tension unless the anchor bond zone extends well past the caliche into competent material. We design both active and passive anchor systems starting from a clear understanding of this local stratigraphy. Before finalizing anchor type and free length, we often recommend a CPT test to map the exact depth and thickness of the caliche, because guessing wrong leads to creep failure or excessive tendon elongation under service loads.
Caliche is not bedrock. Treating it as rock in anchor design is the fastest path to a failed proof test and a costly redesign.
Scope of work in Tempe Arizona
- Free length minimum 15 ft for active anchors beyond the critical failure surface
- Bond length verified by physical caliche layer measurement, not assumed from regional maps
- Lock-off load set at 70% of design load for permanent anchors in expansive clay seams
- Corrosion protection Class II per PTI DC35.1 for anchors within 5 ft of SRP canal rights-of-way
Demonstration video
Risks and considerations in Tempe Arizona
The anchor stressing jack is a calibrated hydraulic ram with a digital pressure gauge and dial indicator reading to 0.001 inches. We set it up on a reaction frame bearing against the wall wale, and every technician on our crew knows the sound of caliche cracking during loading—a sharp pop followed by a sudden pressure drop on the gauge. In Tempe, the biggest risk is bond zone failure within partially cemented horizons that pass a visual inspection but cannot sustain the design bond stress. If the grout bulb sits in a zone where calcium carbonate content drops below 30%, the residual friction can be half of what the design assumes. We mitigate this by requiring bond zone logging and by switching to a pressure-grouted anchor system when the fines content exceeds 15%. A secondary risk is corrosion from sulfate-rich irrigation seepage; soils near Tempe's canal network show sulfate concentrations above 0.1%, which triggers the requirement for Type V cement grout and enhanced tendon sheathing per PTI DC35.1.
Our services
Anchor design in Tempe spans temporary excavation support and permanent retaining structures. Our scope covers the full design sequence from geotechnical investigation through load testing.
Active tieback anchor design
We calculate the unbonded and bonded lengths, select strand or bar type, and specify stressing sequence. Design includes seismic load combination per ASCE 7-22 Section 2.4 for Tempe's Site Class C or D profiles.
Passive soil nail and rock bolt design
We size nail diameter, spacing, and length using the FHWA Soil Nail Manual. In caliche, we reduce the default bond strength and require verification testing on sacrificial nails before production.
Proof testing and performance verification
We write the testing specification and supervise field execution: lift-off test, performance test, proof test, and extended creep monitoring where caliche thickness exceeds 2 ft.
Corrosion protection design
We specify encapsulation class, grout cover, and tendon material based on soil sulfate, chloride, and pH testing. Tempe canal-adjacent sites almost always require Class II protection.
Quick answers
What is the difference between active and passive anchors?
Active anchors are prestressed tiebacks that apply a load to the structure before soil movement occurs. We tension them with a hydraulic jack and lock off at a specified load, typically 70–80% of design load. Passive anchors—such as soil nails and rock bolts—only develop resistance when the soil mass starts to deform. In Tempe, we use active anchors for soldier pile walls exceeding 15 ft height and passive systems for shallower cuts in competent caliche.
How does caliche affect anchor capacity in Tempe?
Caliche is a calcium-carbonate-cemented soil that can mimic weak rock but behaves erratically under sustained tension. Its unconfined compressive strength varies from 50 to over 500 psi within a single site. We never assume a uniform bond stress across the caliche layer. Instead, we log the bond zone during drilling, adjust the bond length field-side if the caliche thickness differs from the geotechnical baseline report, and run extended creep tests on production anchors per PTI DC35.1.
What is the cost range for anchor design services in Tempe?
Our design fees for active/passive anchor systems in Tempe typically range from US$1,190 to US$3,620, depending on the number of anchor types, wall height, and whether we are providing full construction-phase testing supervision or just the sealed design package. The fee includes the load transfer calculations, corrosion protection specification, and the written proof testing procedure.
How long does the design and testing process take?
A standard anchored wall design with 20–40 tiebacks takes 7–10 business days from receipt of the geotechnical report. If additional CPT or borings are needed to define the caliche boundary, the field investigation adds 2–3 days. Proof testing on site runs concurrent with anchor installation; we typically complete the performance and proof tests within 24 hours of each anchor being grouted and reaching sufficient strength.
Do you handle Maricopa County permitting requirements?
Yes. Our design submittals meet Maricopa County building code amendments and City of Tempe public works standards for retaining structures over 4 ft. We coordinate directly with the plan reviewer on the anchor schedule, corrosion class, and lateral earth pressure assumptions. The package includes the engineer's sealed calculations and the PTI-compliant testing matrix required prior to permit approval.
